what customers should know before ordering a shadow mask (deposition mask)

When it comes to ordering a shadow mask for deposition processes, there are several important factors that customers should be aware of. Understanding these key considerations can help ensure a successful and efficient manufacturing process. Let's dive into what customers should know before placing an order for a shadow mask.

What is a Shadow Mask?

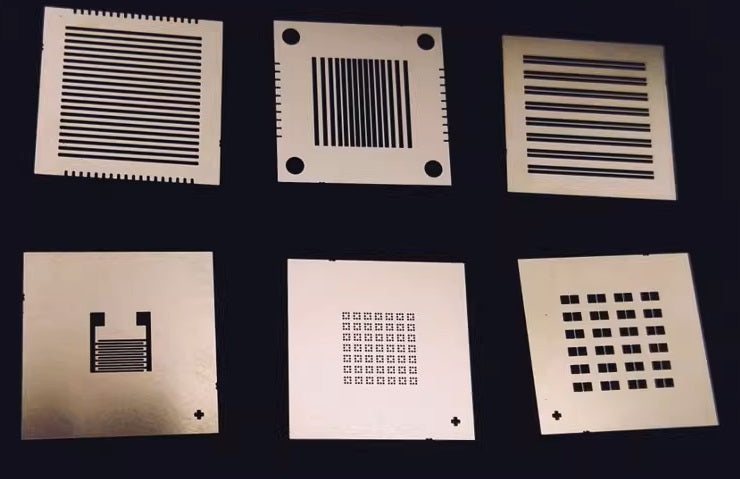

A shadow mask, also known as a deposition mask, is a critical component used in various thin film deposition techniques such as thermal evaporation and sputtering. It is a mask that is placed in front of a substrate to define the pattern of the deposited material. Shadow masks are commonly used in the production of electronic devices, displays, and photovoltaic cells.

Material Compatibility

One of the most important considerations when ordering a shadow mask is the material compatibility. The material of the shadow mask should be carefully selected based on the deposition process and the material being deposited. Different materials have varying thermal and chemical resistance properties, so it is crucial to choose a material that can withstand the specific deposition conditions.

• Durable Materials – stainless steel, molybdenum, quartz, or sapphire for long-term use in vacuum environments.

Pattern Design and Resolution

The pattern design and resolution of the shadow mask play a significant role in the quality and accuracy of the deposition process. Customers should consider the desired pattern layout and the resolution requirements of their application before ordering a shadow mask. The design of the mask will determine the final shape and dimensions of the deposited material.

• Thickness Range: 0.01mm to 5mm
  Tolerance: ±0.002mm for exceptional accuracy
  Feature Resolution: Minimum width of features as small as 0.02mm

Professional experiences

Most companies require customers to provide an AutoCAD file or a detailed sketch, which means the user must consider every design detail. However, many users do not have enough experience to account for all these details—especially corner regions or non-critical areas that do may significantly affect device performance. In addition, many users are not familiar with professional design software.

Therefore, working with a professional company that can handle these design details for you is extremely beneficial. It helps reduce design risks, avoids unnecessary mistakes, and ensures the shadow mask meets your application requirements.

Customization Options

Depending on the specific requirements of the deposition process, customers may need customized shadow masks to meet their unique needs. It is important to work with a reputable manufacturer that offers customization options such as different materials, sizes, and patterns. Customized shadow masks can help optimize the deposition process for improved efficiency and quality.

By considering these key factors before ordering a shadow mask, customers can ensure a successful and seamless deposition process. Working with a trusted supplier who understands the intricacies of thin film deposition can also help customers navigate the complexities of choosing the right shadow mask for their application.

Contact us (support@design-realized.com) to begin manufacturing your high-precision shadow mask.
