High-Resolution 1D Array Achieving 3.1% Energy Resolution at 662 keV
Technical Summary
- Detector type: LaBr₃:Ce scintillator coupled to SiPM readout
- Architecture: One-dimensional (1D) array
- Measured average energy resolution: 3.1% FWHM @ 662 keV (¹³⁷Cs)
- Readout technology: Solid-state SiPM array (PMT-free)
- Key outcome: Near-PMT-level spectral performance in a scalable SiPM-based array
Measured Performance of LaBr₃–SiPM Gamma-Ray Detector
| Parameter | Measured Value |
|---|---|
| Scintillator Material | LaBr₃:Ce |
| Photodetector | Silicon Photomultiplier (SiPM) |
| Detector Architecture | One-dimensional (1D) array |
| Gamma-Ray Source | ¹³⁷Cs |
| Reference Energy | 662 keV |
| Energy Resolution (FWHM) | 3.1% (average across array) |
| Readout Type | Solid-state, PMT-free |
| Measurement Mode | Pulse-height spectroscopy |
The one-dimensional LaBr₃:Ce scintillator array coupled with SiPM readout demonstrates an average energy resolution of 3.1% FWHM at 662 keV, confirming near-PMT-level performance in a compact solid-state gamma-ray detector architecture.
What Is a LaBr₃–SiPM Gamma-Ray Detector?
A LaBr₃–SiPM gamma-ray detector combines a LaBr₃:Ce scintillation crystal with a silicon photomultiplier (SiPM) optical readout. Incoming gamma photons deposit energy in the crystal, producing fast, high-yield scintillation light that is converted into electrical signals by the SiPM.
LaBr₃ is known for its exceptional intrinsic performance, while SiPMs enable compact, low-voltage, array-based detector designs not easily achievable with traditional photomultiplier tubes (PMTs).
Why LaBr₃ Is a Benchmark Scintillator for Gamma Spectroscopy
LaBr₃:Ce is widely regarded as one of the highest-performance inorganic scintillators due to:
- Very high light output (~63,000 photons/MeV)
- Fast scintillation decay (~16 ns)
- Excellent intrinsic energy resolution
- High detection efficiency for medium-energy gamma rays
These properties allow LaBr₃ detectors to resolve closely spaced gamma peaks, making them suitable for isotope identification and precision spectroscopy.
Why Use SiPM Instead of PMT?
SiPMs are solid-state photodetectors consisting of Geiger-mode avalanche photodiodes operated in parallel. Compared to PMTs, SiPMs offer:
- Low operating voltage (tens of volts)
- Compact and mechanically robust form factor
- Insensitivity to magnetic fields
- Natural compatibility with multi-channel arrays (1D / 2D)
The main technical challenge is preserving LaBr₃’s intrinsic resolution while managing gain uniformity, noise, optical coupling, and temperature stability.
1D LaBr₃–SiPM Array Design

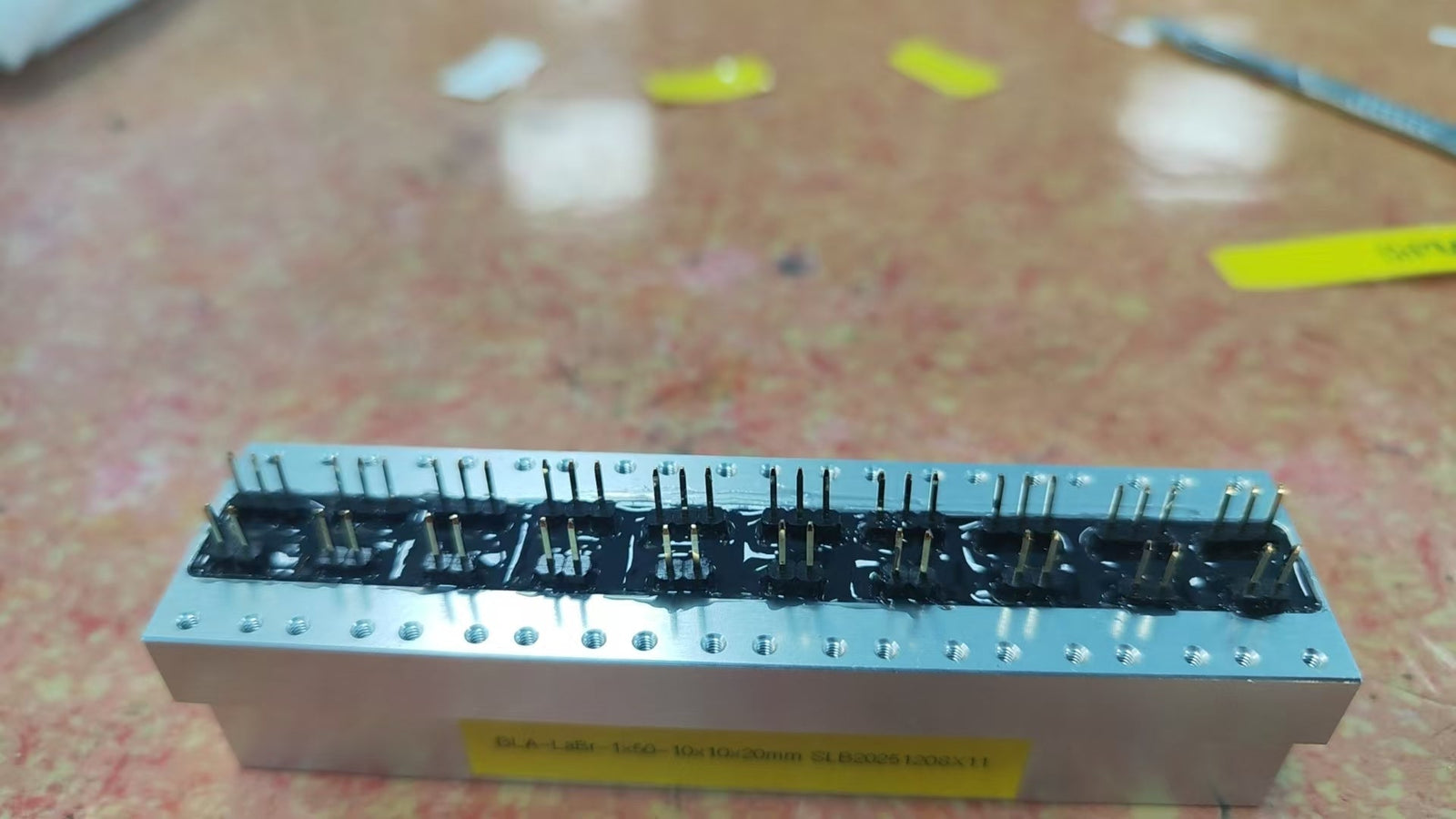

The reported detector is implemented as a one-dimensional LaBr₃ scintillator array coupled to a matching SiPM array.
Key design aspects include:
Optical Interface
- Precision-polished LaBr₃ surfaces
- Controlled optical coupling to maximize photon transfer
- Suppression of optical cross-talk between adjacent channels
SiPM Bias and Gain Control
- Careful bias tuning to minimize channel-to-channel gain variation
- Gain stabilization to preserve peak alignment across the array
Front-End Signal Processing
- Fast, low-noise electronics matched to LaBr₃’s short decay time
- Pulse-height analysis optimized for energy spectroscopy
- Channel-level calibration applied during data processing
Measured Performance: Energy Resolution
Using a ¹³⁷Cs gamma-ray source (662 keV), the detector achieved:
- Average energy resolution: 3.1% FWHM @ 662 keV
- Uniform spectral response across the 1D array
- Stable peak position and resolution during repeated measurements
This result demonstrates that SiPM-based LaBr₃ detector arrays can approach traditional PMT-based systems in energy resolution, while enabling more compact and scalable detector architectures.
Why a 1D Array Matters for Gamma Detection
Compared to single-pixel detectors, 1D arrays provide:
- Position sensitivity along one axis
- Improved event localization
- A direct path toward 2D imaging systems
- Modular scalability for advanced detector assemblies
This architecture is particularly relevant for compact spectroscopic imagers, portable radiation instruments, and research platforms requiring spatial resolution without the complexity of full 2D readout.
Typical Applications
LaBr₃–SiPM 1D gamma-ray detectors are suitable for:
- High-resolution gamma spectroscopy
- Isotope identification and nuclear safeguards
- Portable and handheld radiation detectors
- Medical and industrial gamma detection R&D
- Modular detector systems requiring compact form factors
Conclusion
The demonstrated LaBr₃–SiPM 1D gamma-ray detector with 3.1% energy resolution confirms that modern SiPM-based systems are capable of preserving the intrinsic advantages of LaBr₃ scintillators.
This approach provides a robust foundation for next-generation gamma-ray detectors that require high spectral resolution, reduced size and power consumption, and scalable array architectures.
