Where to Order Custom Shadow Masks
Shadow masks are essential tools for PVD, CVD, sputtering, evaporation, sensor fabrication, thin-film patterning, and early-stage device prototyping.
Research labs often require non-standard, one-off, or highly precise mask designs, which makes selecting the right supplier crucial.
This guide explains:
- What to look for in a custom mask supplier
- Typical capabilities and tolerances
- How to prepare your design files
- Why research labs prefer specialized fabrication services
- Direct ordering options for universities and R&D teams
What Makes a Good Shadow Mask Supplier for Research Applications?
A qualified supplier should provide:
1. Micro-feature capability

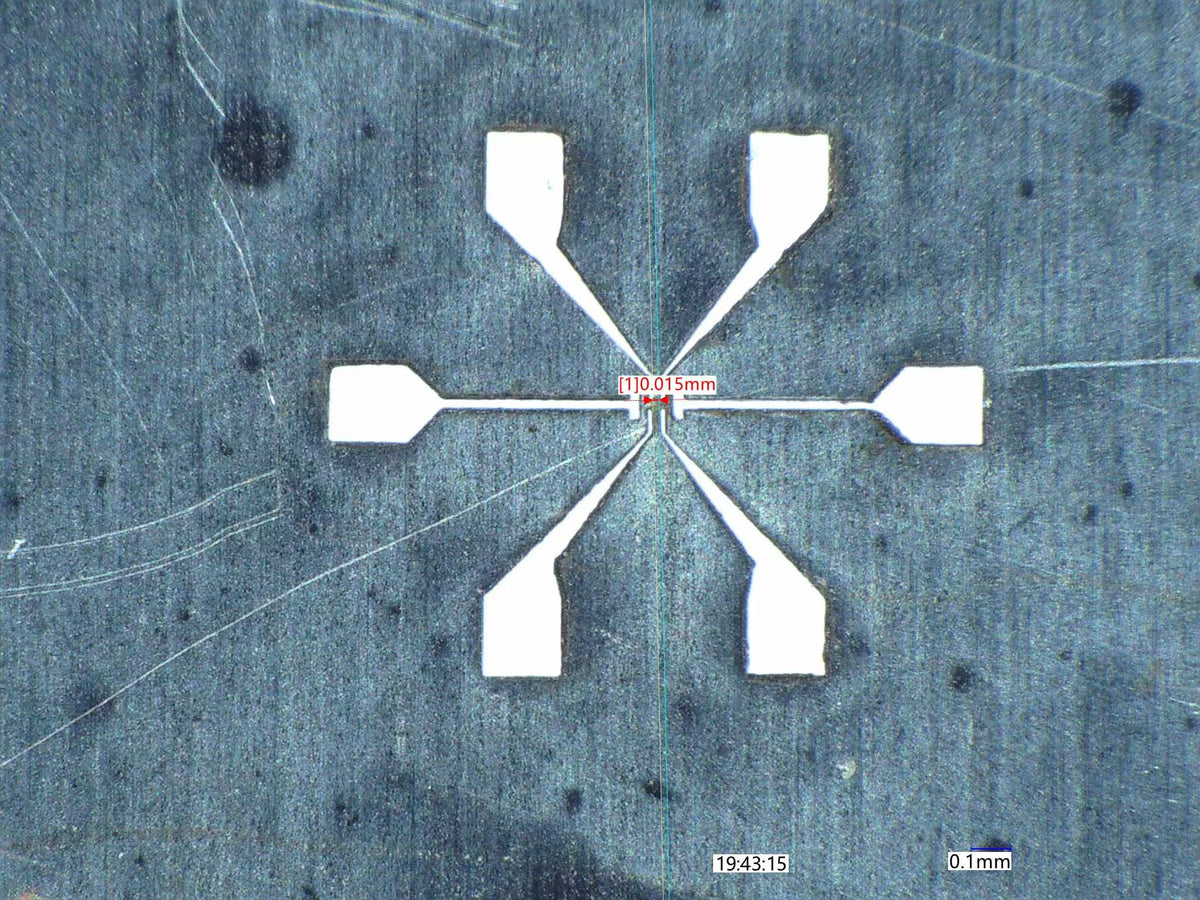

- Minimum feature size: 1–5 µm for stainless steel
- Available alternatives for finer features (nickel, silicon, etc.)
2. Custom thickness and materials
- Stainless steel: 0.03–0.5 mm
- Molybdenum, nickel, or silicon (upon request)
3. Fast turnaround
Research projects often depend on rapid prototyping.
4. Engineering support
A good supplier helps refine:
- Feature sizes
- Thickness selection
- Tolerance optimization
- Manufacturability
5. University-friendly ordering
- Purchase orders (PO)
- Tax-exempt ordering
- Net-30 terms (when available)
- Documented invoice formats
What Information Should Labs Provide When Ordering?
- Your idea! clearly show the design, we will handle everything for your
Why Many Universities Choose Specialized Microfabrication Vendors
1. Ability to produce non-standard micro features
Standard machining shops cannot cut <10 µm features.
2. Experience with scientific projects
Mask suppliers understand:
- alignment holes
- wafer compatibility
- vacuum requirements
- thermal constraints in deposition systems
3. Small batch compatibility
Most labs need 1–5 pieces,.
4. Faster communication for iterative R&D
Scientific projects often require revisions.
Example Capabilities Provided by Research-Focused Suppliers
| Capability | Typical Value |
|---|---|
| Min feature size | >1 µm |
| Tolerance | ±0.1 µm |
| Thickness | 0.03–0.5 mm |
| Materials | SS304, Nickle, Mo, Silicon |
| Lead time | 3–7 business days |
| Support | Free engineering review |
Frequently Asked Questions
Q1. Where can universities order custom shadow masks?
Specialized microfabrication vendors that support>1µm precision and small-quantity orders.
Q2. What file format is needed?
DXF or vector CAD formats, or Hand draw figure
Q3. Can single-piece orders be made?
Yes — research suppliers typically support 1–5 pcs.
Q4. What is the usual turnaround time?
3–7 business days depending on complexity.
Q5. What thickness is best for thin-film research?
dependend on your design , typically <0.1mm
