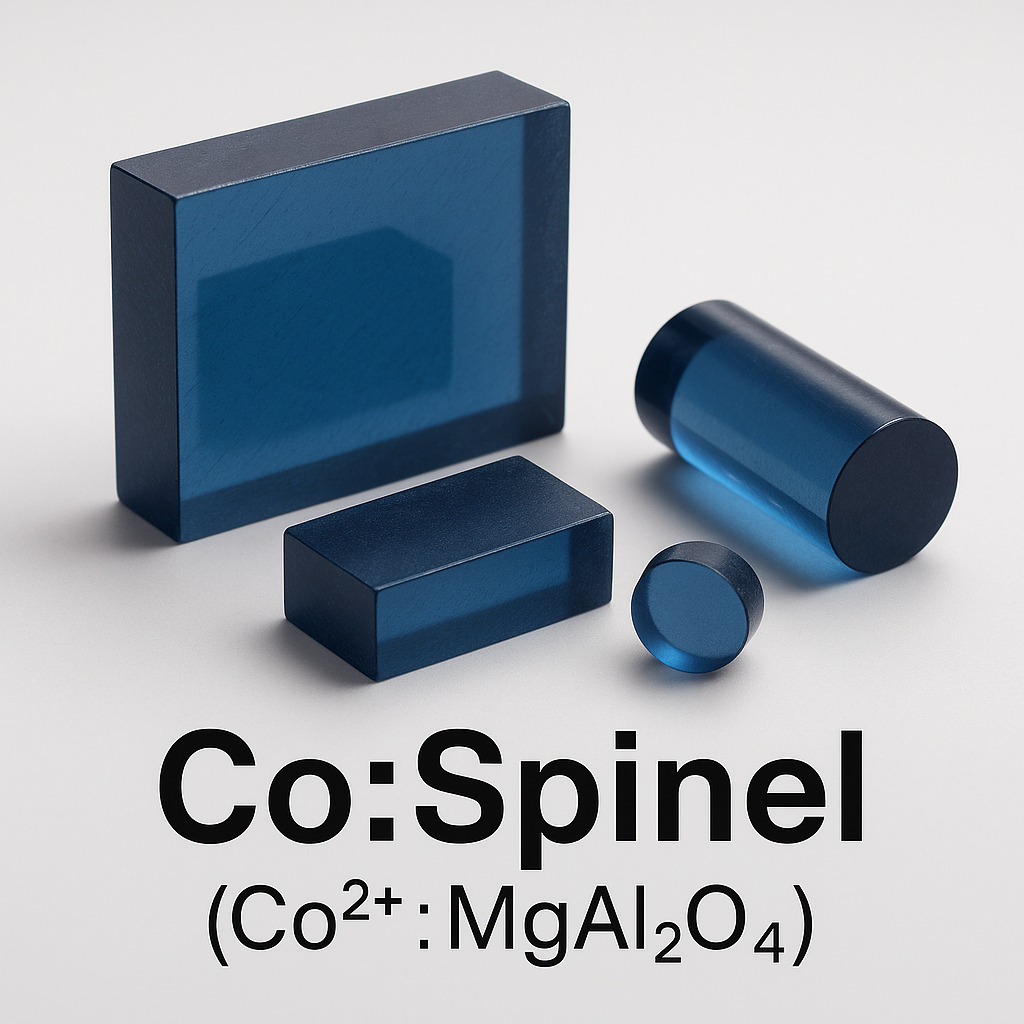

Co:Spinel Crystal - Passive Q-Switch for 1.54μm Lasers

Co:Spinel Passive Q-Switch Crystal

Co:Spinel (Cobalt-doped Magnesium Aluminate Spinel, Co:MgAl₂O₄) is an effective passive Q-switch crystal widely used for eye-safe and near-infrared laser systems. It provides strong saturable absorption around the 1.5–1.6 μm wavelength range and is commonly used with Er:glass, Er:YAG, and other erbium-based laser sources.

Compared with traditional passive Q-switch materials, Co:Spinel offers high optical damage threshold, good thermal and chemical stability, and reliable performance in compact laser designs. It is especially suitable for pulsed eye-safe laser applications, laser rangefinders, LIDAR systems, medical lasers, and scientific research systems.

Key Features

• Effective passive Q-switch for 1.5–1.6 μm laser systems
• High optical damage threshold
• Excellent thermal and chemical stability
• Suitable for compact and rugged laser designs
• Low insertion loss and reliable saturable absorption performance
• Custom dimensions, coatings, and initial transmission available

Typical Applications

• Eye-safe laser rangefinders
• LIDAR and remote sensing systems
• Er:glass and Er:YAG lasers
• Medical and aesthetic laser systems
• Military and defense laser systems
• Scientific and industrial pulsed laser research

Typical Specifications

Custom Options

• Custom diameter, thickness, and aperture size
• Different initial transmission values
• AR coating for 1.5 μm, 1.54 μm, 1.57 μm, or other wavelengths
• Mounted or unmounted crystal options
• Prototype and research-grade quantities available

Request a Quote

Please contact us (Support@design-Realized.com) with your required wavelength, crystal size, initial transmission, coating requirement, and quantity. Our engineering team can help recommend a suitable Co:Spinel passive Q-switch crystal for your laser system.
