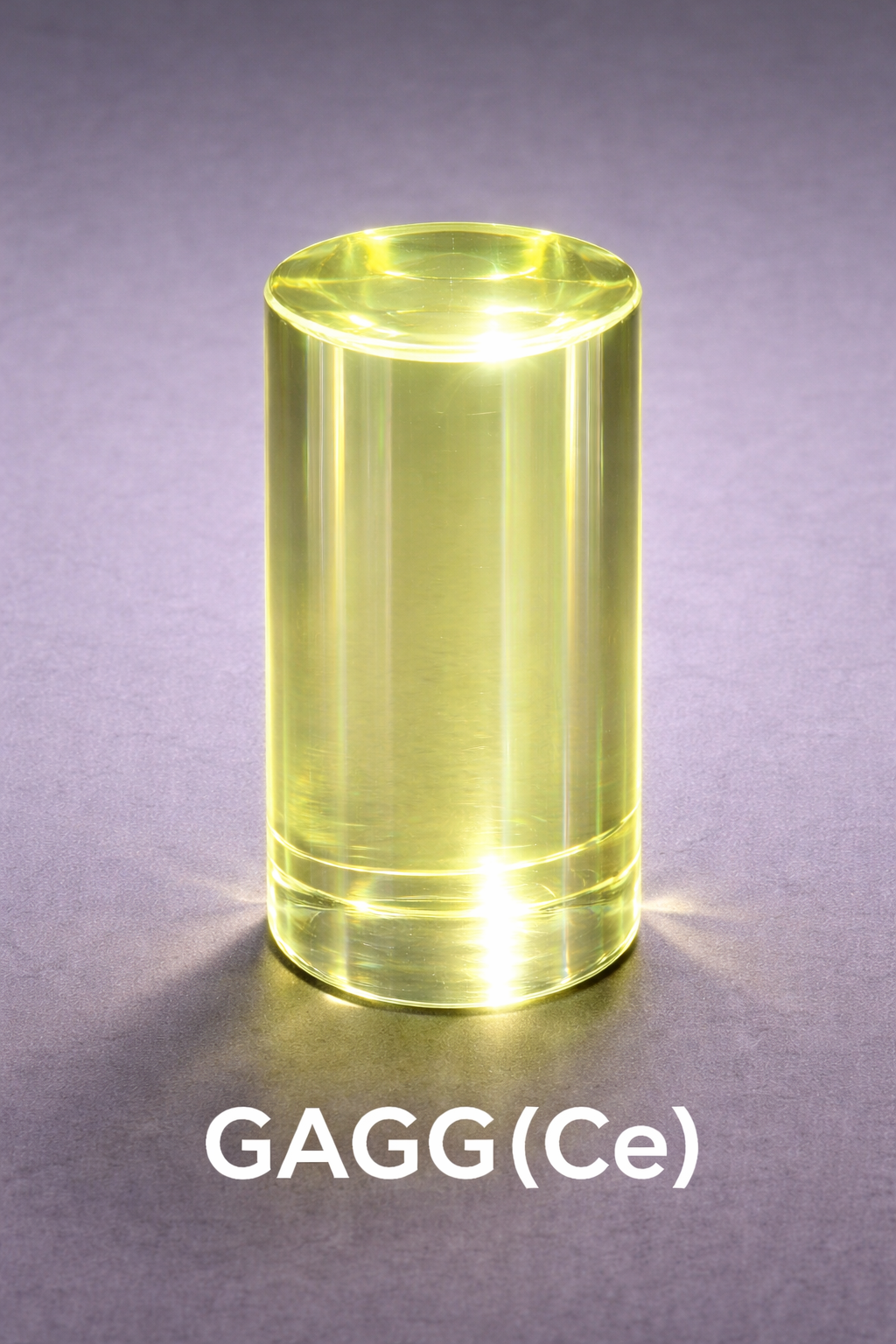

GAGG(Ce) Scintillator Crystal

GAGG(Ce) (Cerium-doped Gadolinium Aluminum Gallium Garnet) Scintillator Crystal

GAGG(Ce) (Gd₃Al₂Ga₃O₁₂:Ce) is a next-generation inorganic scintillator crystal designed for high-efficiency gamma-ray detection. It combines very high light output, fast decay time, excellent energy resolution, and outstanding mechanical and chemical stability.

Compared with traditional scintillators such as NaI(Tl) and CsI(Tl), GAGG(Ce) offers significantly higher light yield, non-hygroscopic behavior, and improved durability, enabling compact detector designs without hermetic sealing.

GAGG(Ce) exhibits strong gamma-ray stopping power due to its high effective atomic number and density, while its emission peak around 520 nm is well matched to SiPMs and PMTs, making it ideal for modern solid-state radiation detectors.

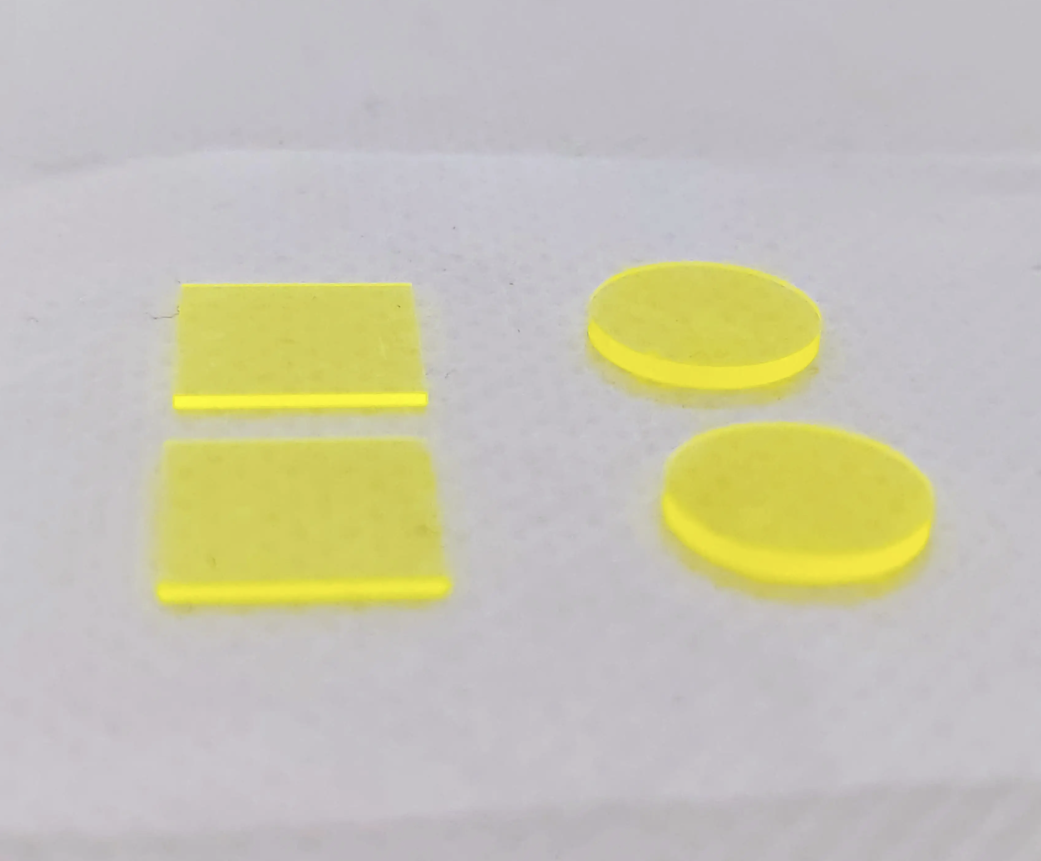

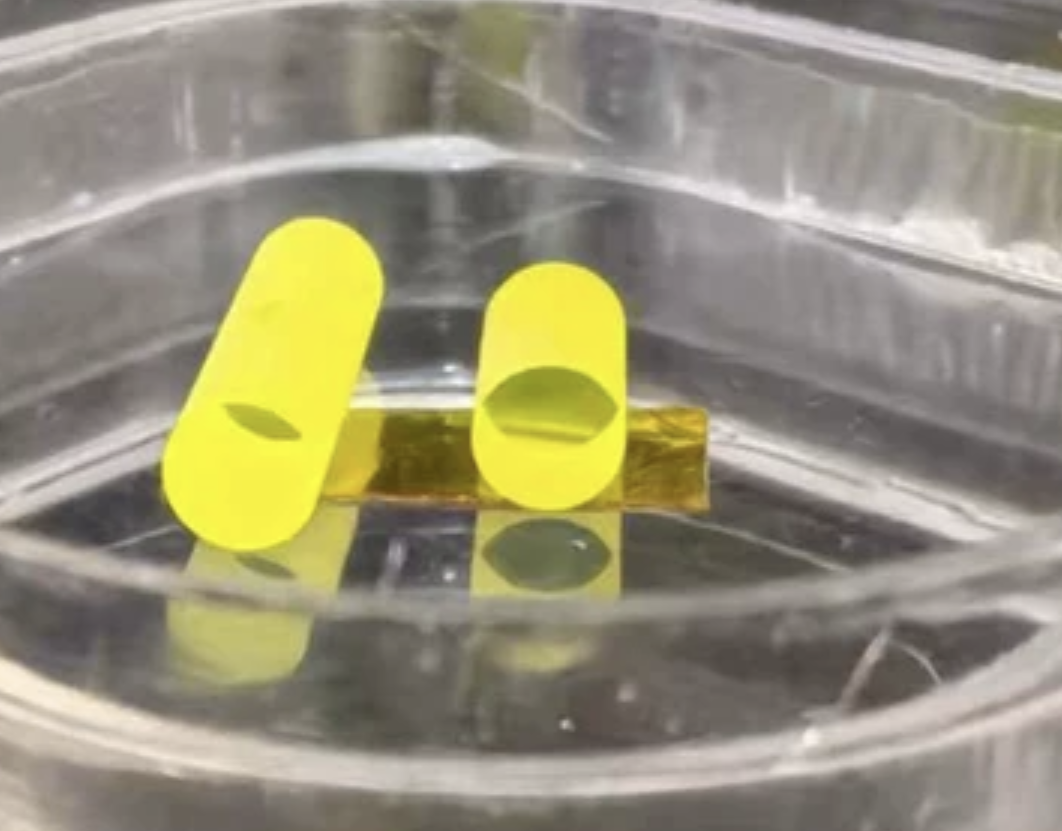

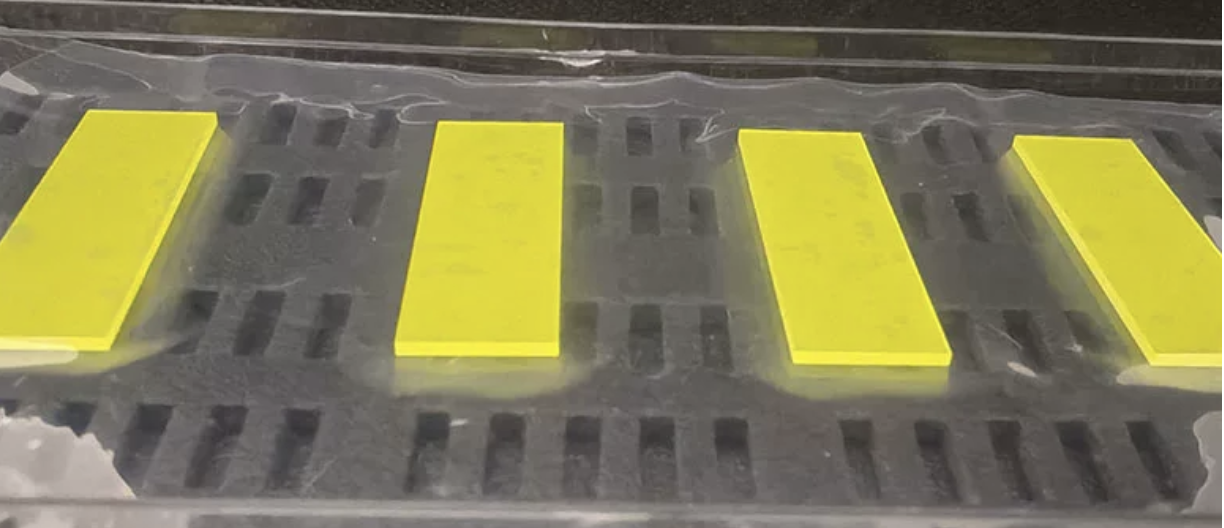

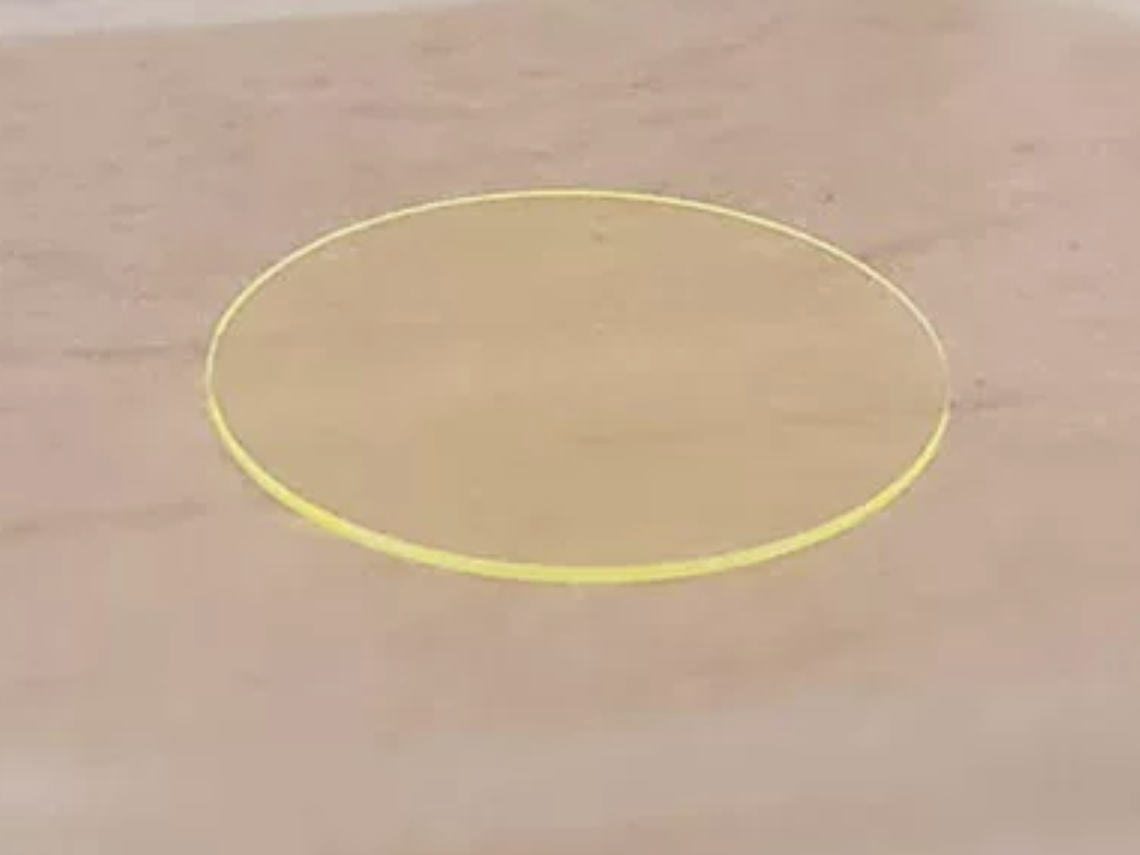

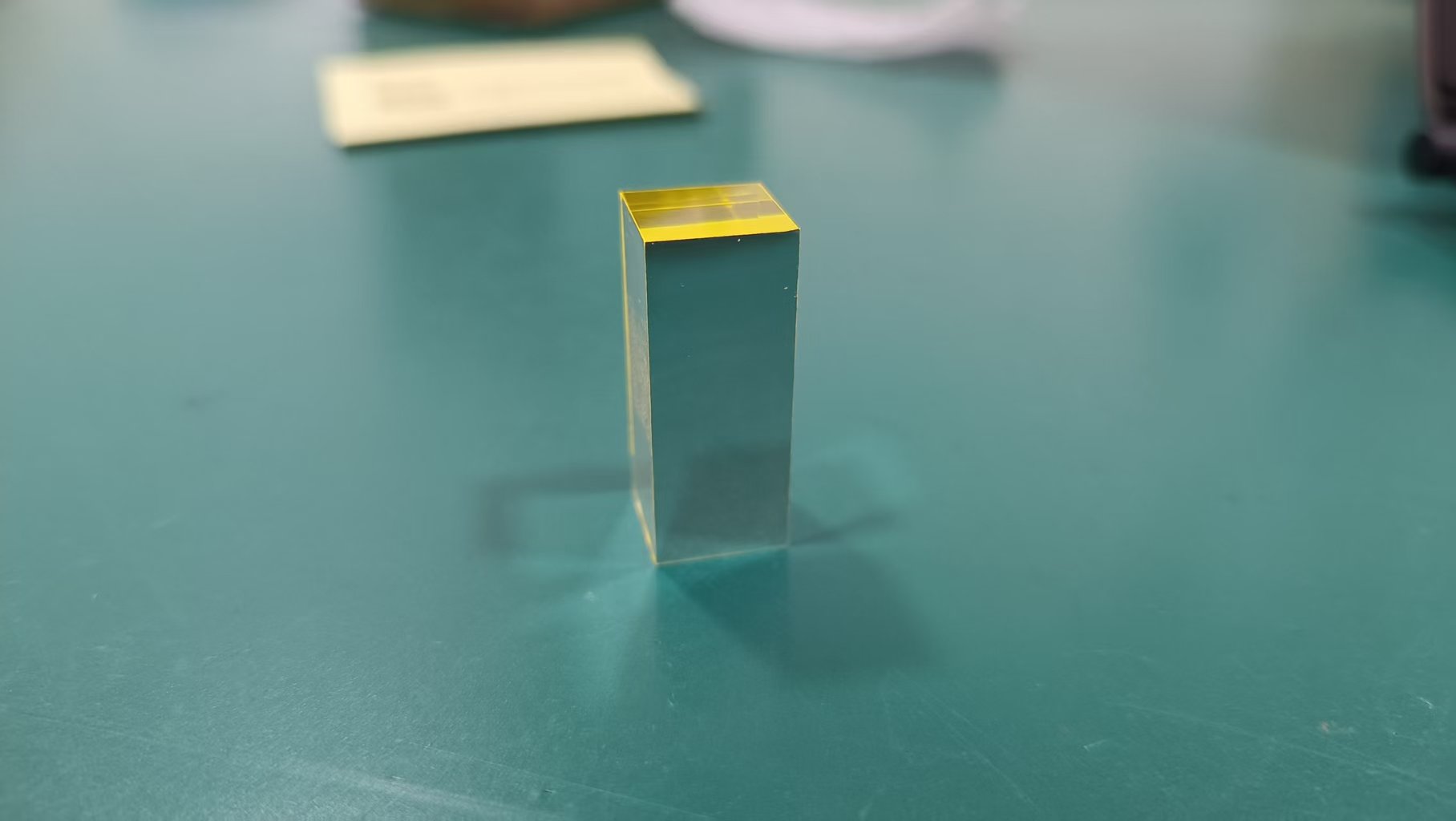

We supply high-quality GAGG(Ce) single crystals with optical-grade polishing, tight dimensional control, and optional reflector or encapsulation options for research, medical imaging, and industrial radiation detection applications.

Key Features

• Very high light output (~50,000–60,000 photons/MeV)
• Fast decay time (~90 ns)
• Excellent gamma energy resolution
• Non-hygroscopic (no hermetic sealing required)
• High density and effective Z
• Emission peak ~520 nm (ideal for SiPMs)
• Excellent mechanical and thermal stability

Typical Applications

• Gamma-ray spectroscopy
• Medical imaging (PET, SPECT, CT research)
• Radiation monitoring and dosimetry
• Homeland security and nuclear inspection
• Industrial non-destructive testing (NDT)
• Scientific and laboratory radiation detectors

Typical Properties

• Material: Gd₃Al₂Ga₃O₁₂:Ce (GAGG:Ce)
• Density: ~6.6 g/cm³
• Light Yield: ~50,000–60,000 photons/MeV
• Decay Time: ~90 ns
• Emission Peak: ~520 nm
• Energy Resolution: ~5–7% @ 662 keV (typical)
• Hygroscopic: No
