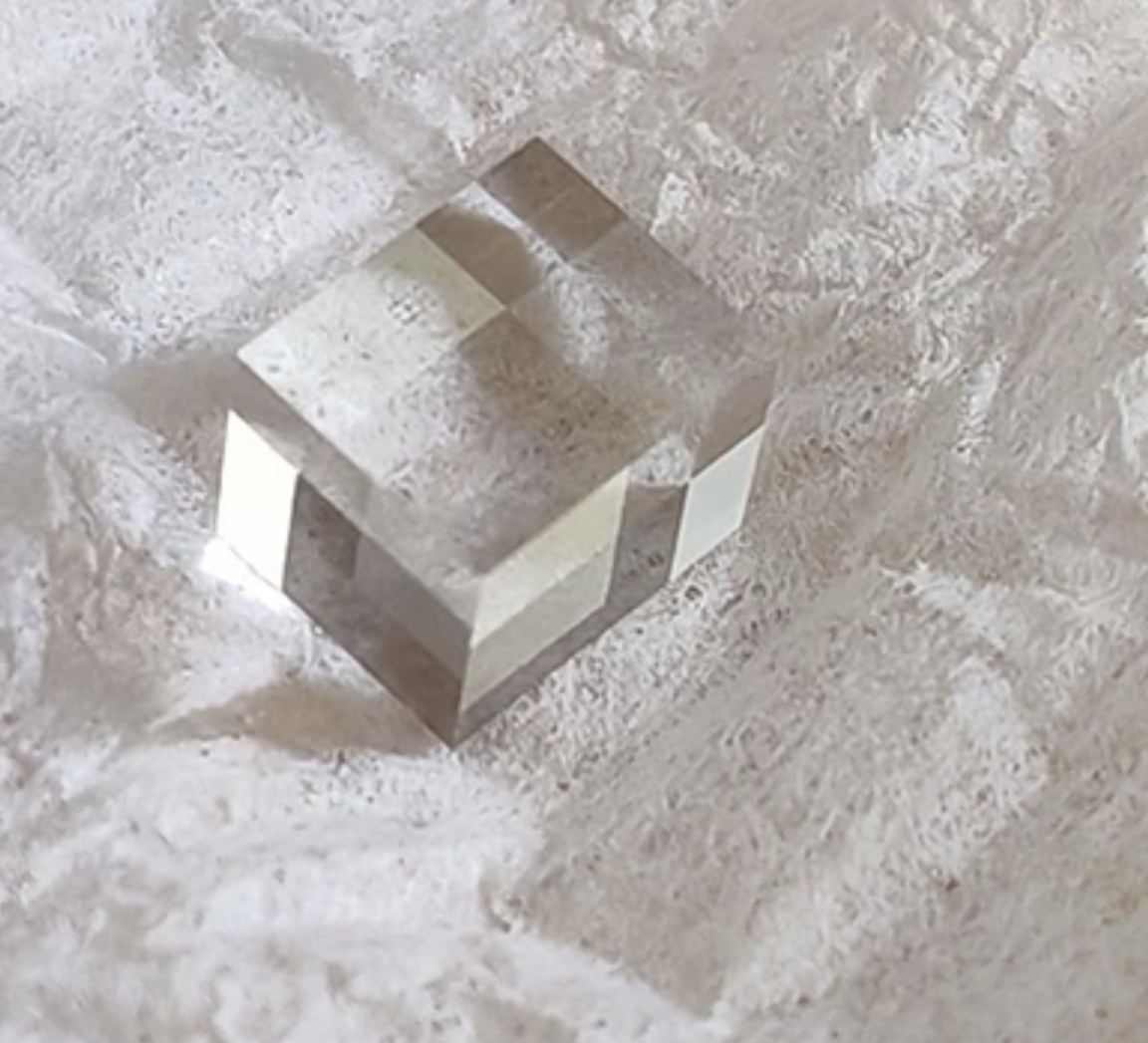

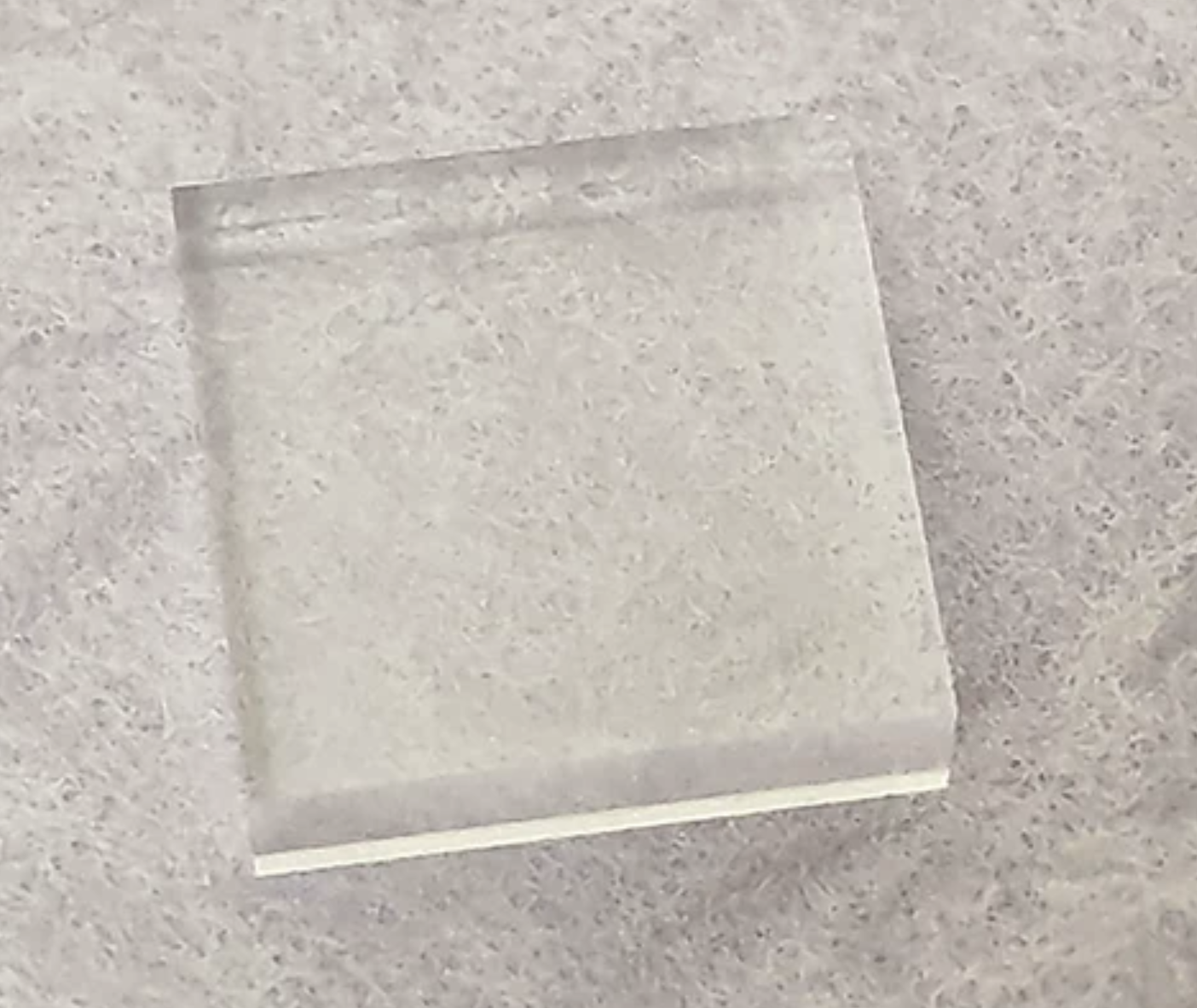

Yb:CALGO Laser Crystal (Yb:CaGdAlO₄) – Ultrafast Femtosecond Laser Gain Medium

Yb:CALGO Laser Crystal (Yb:CaGdAlO₄) – Ultrafast Femtosecond Laser Gain Medium

Yb:CALGO (Ytterbium-doped Calcium Gadolinium Aluminate, Yb:CaGdAlO₄) is a high-performance laser crystal widely used in diode-pumped ultrafast and femtosecond laser systems. Owing to its exceptionally broad emission bandwidth, high efficiency, and favorable thermal properties, Yb:CALGO has become one of the most attractive gain media for generating ultrashort pulses in the 1030–1050 nm wavelength range.

Key Features

• Broad emission bandwidth suitable for femtosecond pulse generation
• High absorption around 976–980 nm for efficient diode pumping
• Emission wavelength around 1030–1050 nm
• Excellent gain medium for mode-locked oscillators and regenerative amplifiers
• Suitable for high-average-power and high-repetition-rate lasers
• Good thermal conductivity and reduced thermal lensing
• Ideal for frequency combs, dual-comb spectroscopy, nonlinear optics, and scientific research applications

Typical Applications

• Femtosecond oscillators
• Ultrafast amplifiers
• Frequency comb generation
• Dual-comb spectroscopy
• Nonlinear frequency conversion
• Scientific and industrial laser R&D

Available Specifications

• Doping concentration: 1–5 at.% Yb (custom available)
• Custom dimensions available upon request
• Laser-grade optical polish
• AR coating available for:
• Pump wavelength: 976–980 nm
• Laser wavelength: 1020–1080 nm
• Orientation and mounting options available

Quality

• High optical quality
• Laser-grade polishing
• Carefully inspected before shipment
• Suitable for research laboratories, universities, and laser development projects

Custom sizes, coatings, and doping levels are welcome. Please contact us before ordering if you require specific dimensions or coating specifications.
