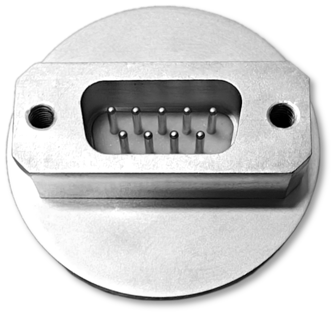

Multi-Pin Signal Vacuum Feedthrough

This multi-pin vacuum feedthrough represents a typical high-density signal interface designed for control, monitoring, and data acquisition (DAQ) in HV/UHV vacuum systems.

It provides hermetic electrical isolation between atmosphere and vacuum while supporting mixed signal types, stable grounding, and low-noise transmission for research, accelerator, and laboratory instrumentation.

• Pin count: reference configuration
• Vacuum rating: HV / UHV compatible
• Flange: CF, KF, or custom bolt pattern
• Signal types: DC, low-level analog, differential (e.g. RS-485)
• Sealing: Ceramic-to-metal hermetic sealing
• Bakeout: Supported (temperature depends on design)

What This Product Demonstrates

This product page shows a representative reference design. Final feedthrough assemblies are custom-engineered based on pin count, per-pin rating, grounding strategy, flange standard, and system constraints.

Typical Applications

• Control wiring for vacuum systems
• Sensor readout and monitoring interfaces
• Motion control and positioning systems
• Multi-channel data acquisition (DAQ)
• Accelerator and laboratory instrumentation

Design & Customization Options

• Custom pin count and pin layout
• Per-pin voltage and current rating
• Dedicated ground pins and shielding schemes
• Mixed-signal layouts (analog + digital)
• Connector preference on air side
• CF, KF, or custom vacuum flanges

Engineering Specification Checklist

• Required pin count and signal type per pin
• Maximum voltage and current per pin
• Vacuum level (HV / UHV)
• Bakeout temperature requirement
• Flange type and mechanical constraints
• Grounding and noise control expectations

Related Feedthrough Solutions

• Multi-Pin & Signal Feedthroughs
• Custom & Hybrid Feedthrough Assemblies
• High-Voltage Vacuum Feedthroughs

FAQ

Is this a standard off-the-shelf product?
No. This page shows a reference configuration. Each multi-pin feedthrough is custom-designed based on system requirements.

Can the pin count be changed?
Yes. Pin count, spacing, and layout can be customized to match voltage, signal integrity, and mechanical constraints.

Is this suitable for UHV bakeout?
Yes. Designs can support UHV and bakeout depending on material selection and geometry.
