Ce:YAG Crystal | Scintillator & Phosphor for Detection
Ce:YAG Crystal | Scintillator & Phosphor for Detection
Couldn't load pickup availability

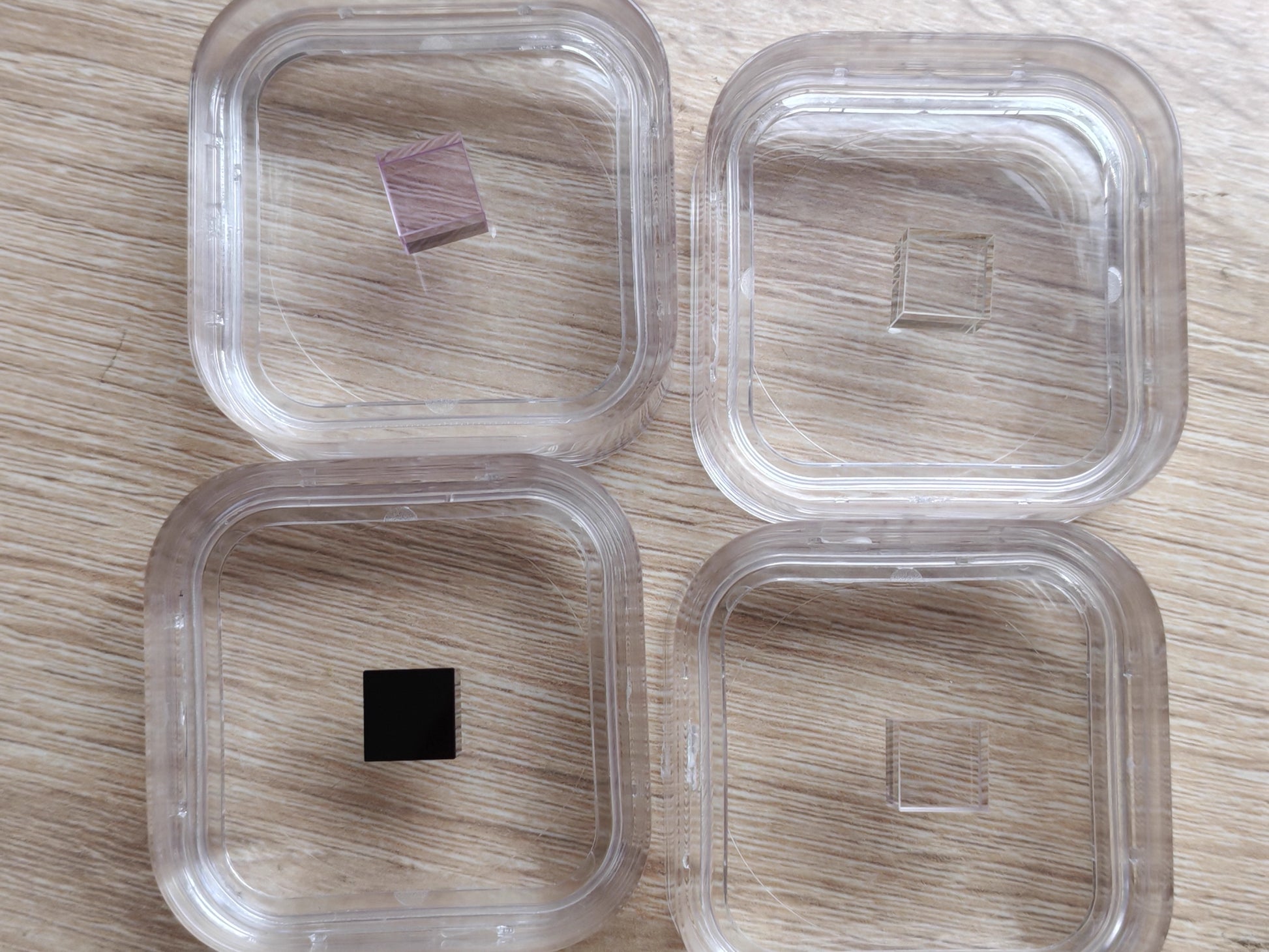

Ce:YAG (Ce³⁺:Y₃Al₅O₁₂) crystals are widely used as scintillators and phosphor materials due to their fast response time, high light yield, and excellent mechanical and thermal stability.
Unlike laser-gain YAG crystals, Ce:YAG converts high-energy radiation or blue/UV excitation into visible emission, making it ideal for radiation detection, imaging, and solid-state lighting applications.
Our Ce:YAG crystals are produced with high purity and excellent optical quality, suitable for scientific research, detector development, and industrial integration.
Key Features
- High light yield with strong visible emission
- Fast decay time (ideal for high-rate detection)
- Excellent radiation hardness and stability
- Good thermal and mechanical robustness
- Optical-grade polishing available
- Custom sizes and geometries supported
Typical Specifications
- Material: Ce³⁺:Y₃Al₅O₁₂ (Ce:YAG)
- Function: Scintillator / phosphor
- Emission peak: ~550 nm (green-yellow)
- Excitation: UV, blue light, X-ray, γ-ray
- Decay time: ~70 ns (typical)
- Crystal orientation: ⟨111⟩ or ⟨100⟩
- Surface quality: 20/10 or 40/20 scratch-dig
- Polishing: Single- or double-side optical polish
- Coatings: Optional (application-dependent)
Specifications may vary depending on size and dopant level.
Applications
- X-ray and gamma-ray detectors
- Scintillation counters
- Medical imaging systems
- High-energy physics experiments
- Electron and ion beam detection
- White LED phosphor components
- Scientific and industrial R&D
Customization & Fabrication
We support full customization:
- Custom crystal sizes and thicknesses
- Plates, blocks, rods, and special geometries
- Optical polishing (single or double side)
- OEM and bulk orders
- Integration support for detector systems
Please contact us with your application details.
Research & Industry Support
- University and national-lab pricing available
- Tax-exempt purchasing supported
- Technical consultation for detector design
Shipping & Lead Time
- In-stock items: Ship within 1–2 business days
- Custom orders: Typical lead time 2–3 weeks
- Secure packaging for scintillator crystals
Ce:YAG Crystal – FAQ
What is Ce:YAG used for?
Ce:YAG is primarily used as a scintillator or phosphor material for radiation detection, imaging, and solid-state lighting applications.
Is Ce:YAG a laser crystal?
No. Ce:YAG is not a laser gain medium. It converts high-energy radiation or UV/blue excitation into visible light.
What is the emission wavelength of Ce:YAG?
Ce:YAG typically emits around 550 nm (green-yellow region).
Do you offer custom sizes or polishing?
Yes. We offer custom dimensions, thicknesses, and optical polishing based on your detector or imaging system requirements.
What is the typical lead time?
In-stock items ship in 1–2 business days. Custom fabrication typically requires 2–3 weeks.
