Fundamentals of Custom Crystal Growth for Research & Advanced Materials
Custom-grown single crystals are essential components in a wide range of research and advanced materials applications, including scintillators, solid-state lasers, optical systems, and emerging semiconductor platforms.
- Scintillators: LYSO, YSO, BGO, CsI:Tl, NaI:Tl, LaBr₃
- Laser crystals: YAG, Nd:YAG, Er:YAG, Ti:Sapphire
- Optical crystals: Sapphire, Quartz, CaF₂
- Semiconductors: Ga₂O₃, ZnO, CdZnTe, perovskites
- Functional materials: LiTaO₃, LiNbO₃, TGS, KDP
Compared with industrial mass-produced crystals, research applications demand higher purity, precise crystallographic control, accurate doping, and small-batch flexibility. This guide introduces the fundamental crystal growth methods, purity and defect considerations, and key technical parameters researchers should understand before ordering custom single crystals.
SECTION A — Major Crystal Growth Methods
Crystal growth techniques are selected based on melting point, vapor pressure, thermal stability, and defect control requirements of the target material.
1. Czochralski Method (CZ)
Common materials: YAG, Nd:YAG, Sapphire, Semiconductor Si
- Crystal pulled from melt
- Large boule size achievable
- Well suited for laser-grade optical crystals
2. Bridgman / Vertical Gradient Freeze (VGF)
Common materials: BGO, CdZnTe, YSO, LYSO, halide scintillators
- Controlled solidification through thermal gradient
- Good compositional uniformity for scintillators
3. Hydrothermal Growth
Common materials: Quartz, ZnO, KDP-family crystals
- Low-temperature growth for materials that decompose before melting
- Very low defect density
4. Flux Growth
Common materials: Perovskites, borates, complex oxides
- Lower growth temperature
- Suitable for complex or low-solubility compositions
5. Floating-Zone / Optical Zone Melting
Common materials: Ga₂O₃, high-purity oxide crystals
- Crucible-free growth
- Ultra-high purity
- Preferred for semiconductor R&D
SECTION B — Purity, Doping & Defect Control
Purity Grades
- 3N (99.9%)
- 4N (99.99%)
- 5N (99.999%)
- 6N+ (advanced semiconductor and scintillator research)
High-purity starting materials reduce vacancy defects, dislocations, trapped impurities, and color centers in optical crystals.
Doping Control
Common dopants: Nd³⁺, Ce³⁺, Pr³⁺, Mn²⁺, Ti³⁺, MgO, rare-earth ions
- Dopant concentration (mol%, at.%, or wt%)
- Radial and axial uniformity
- Optical absorption characteristics
- Charge compensation mechanisms
Defect Reduction Strategies
- Low dislocation density control
- Uniform refractive index
- Annealing and slow cooling
- Thermal gradient optimization
SECTION C — Orientation & Crystal Cutting
Crystallographic orientation directly influences laser efficiency, scintillation light yield, piezoelectric behavior, and anisotropic optical properties.
- (100), (110), (111)
- c-plane, a-plane, r-plane (sapphire)
- X-, Y-, Z-cut (quartz, LiNbO₃)
Typical tolerances:
- Orientation accuracy: ±0.1–0.5°
- Thickness tolerance: ±0.02–0.1 mm
- Surface flatness: optical polish or fine-lapped
SECTION D — Surface Preparation & Polishing
Surface finish determines optical transmission, light extraction efficiency, laser performance, and bonding quality.
- Lapped or fine-ground surfaces
- Optical polishing (40-20 or 20-10 scratch–dig)
- Single-side or double-side polishing
- Optional AR or HR coatings
SECTION E — Typical Use Cases by Research Field

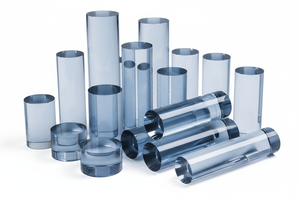

Scintillators
- Radiation detection
- Nuclear imaging
- X-ray and gamma spectroscopy
Materials: LYSO, YSO, CsI:Tl, BGO, GAGG:Ce, CdZnTe
Lasers & Photonics
Materials: YAG, Nd:YAG, Ti:Sapphire, LiNbO₃, KTP
Optics & High-Temperature Applications
Materials: Sapphire, Quartz, CaF₂, MgF₂
Semiconductors & Emerging Materials
Materials: Ga₂O₃, ZnO, perovskites, halide single crystals
Conclusion
Understanding crystal growth fundamentals allows researchers to communicate requirements more effectively with crystal growers, resulting in higher yield, shorter lead times, and improved experimental reproducibility.
This article serves as a foundational technical reference within the Knowledge Hub for scientists and engineers working with custom-grown single crystals.
